Lucid Open-Platform TFF Skid
Plug-and-play filtration for GMP downstream
Purpose-engineered for tangential-flow filtration and diafiltration, this skid snaps into the Lucid Open-Platform framework, complete with documentation, historian tags, and validation tools.
Core Hardware Supported

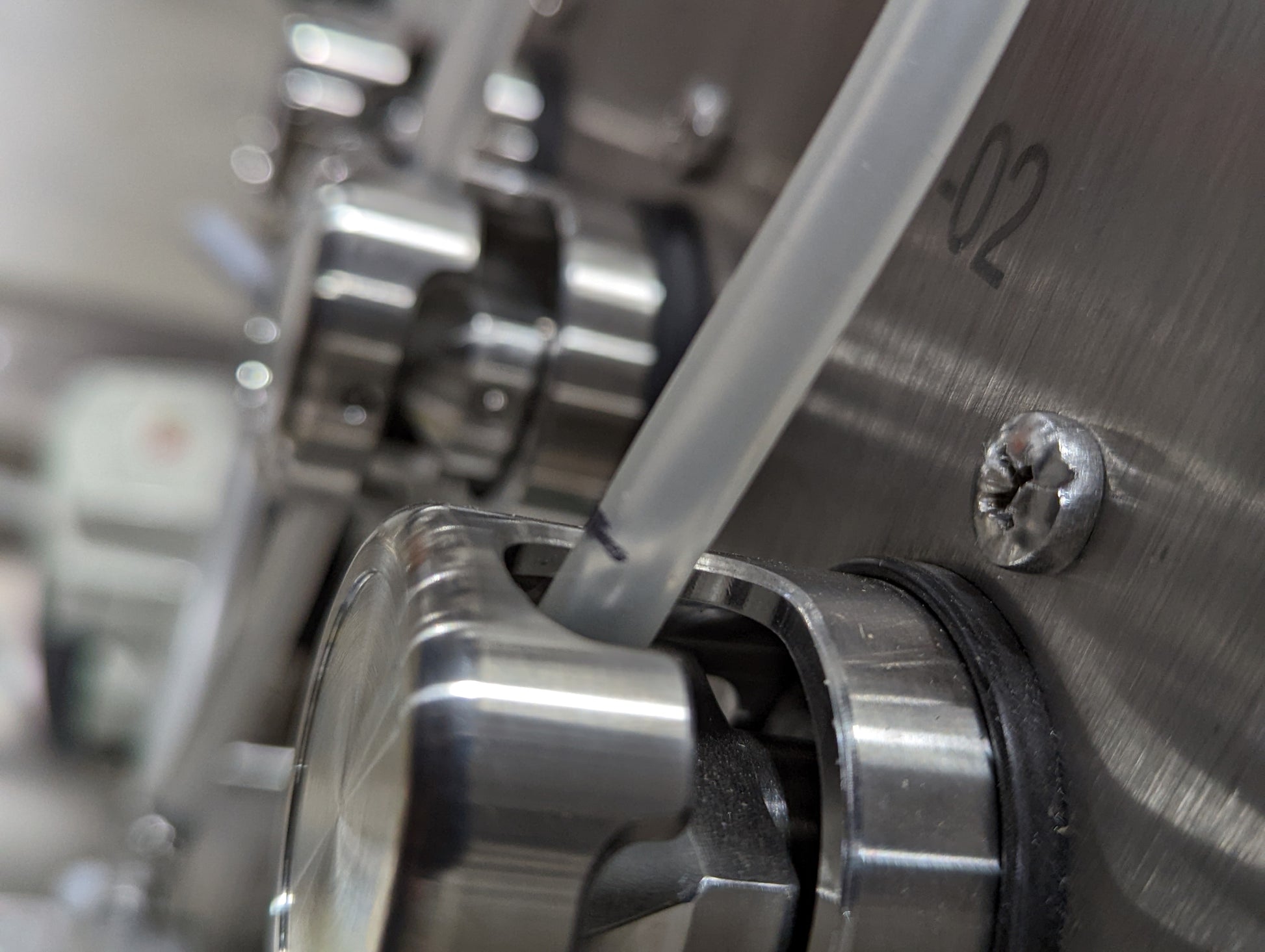

Triple-pump setup – feed, retentate, and permeate for tight TMP control
Stainless membrane housing – configurable cassettes or hollow fibers
Inline sensor suite – pressure, flow, conductivity, and UV for real-time yield tracking

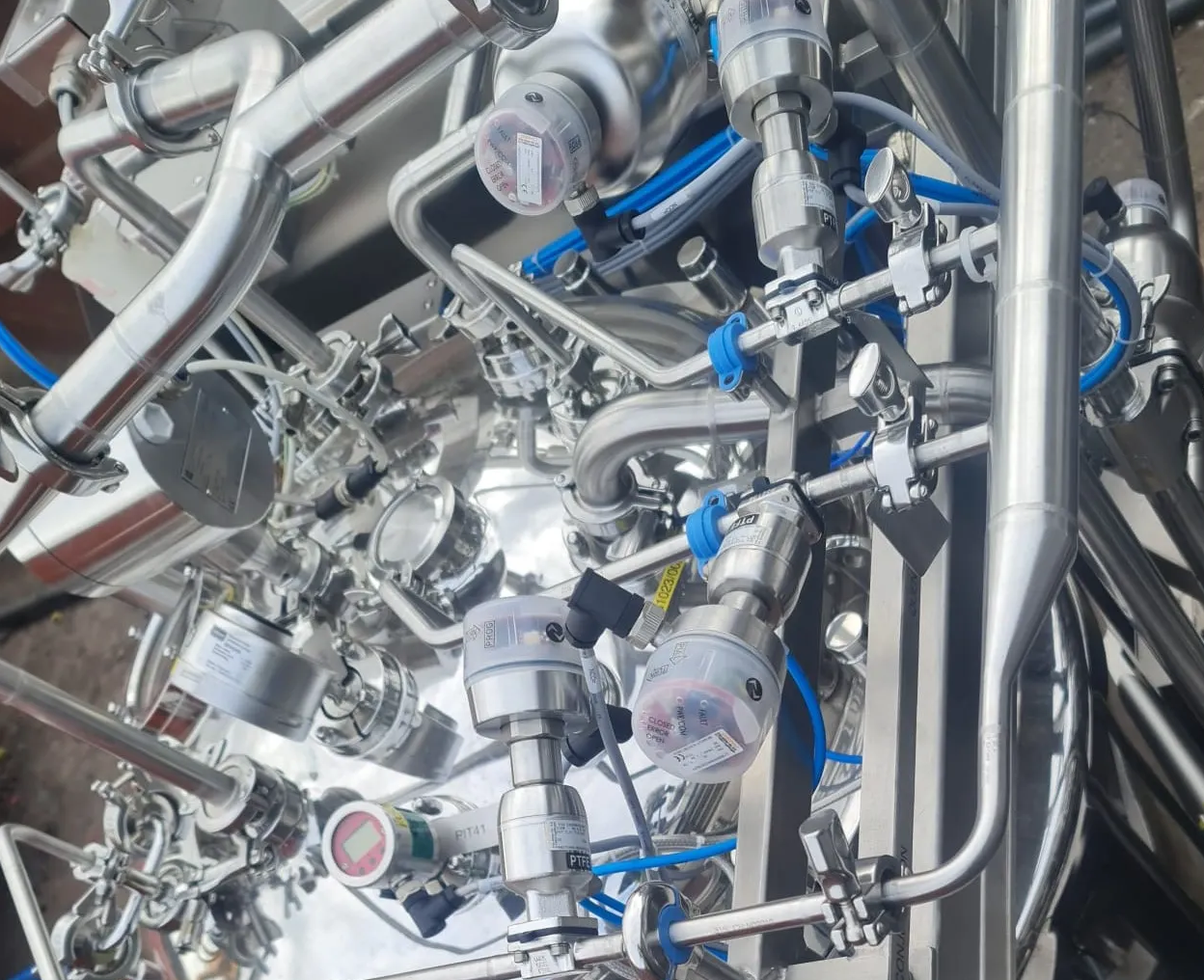

Automated valve manifold – one-button switch between concentration and diafiltration modes
Control Package
| Layer | Delivered Out-of-the-Box |
|---|---|
| Controller | Cascade loops for TMP, feed flow, and filtrate balance |

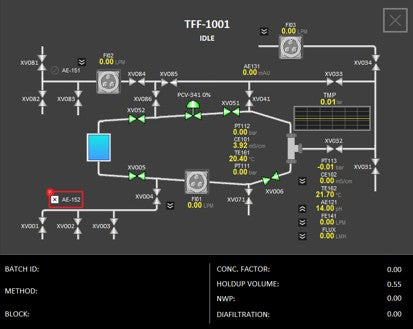

| Operator Interface | HMI faceplates for step, ramp, or volume-based diafiltration |
| Historian | Tag list pre-mapped for trends, alarms, and e-batch reports |
Choose your platform: Rockwell/Allen-Bradley, DeltaV, Ignition, or Wonderware.
Optional Add-On
ISA-88 Batch Recipe Module – automated hold-up volume checks, buffer exchanges, and clean cycles with electronic signatures.
Document Bundle
URS, FRS, SDS, FAT, SAT, and P&IDs, ready for QA review on day one.
Why Lucid’s TFF Solution?
Rapid Deployment: 90 % of code and graphics pre-engineered
Validation-Ready: Pre-written protocols cut CSV effort dramatically
Flexible Fit: Config tools map I/O to your instruments and network in minutes
Download code, Connect utilities, prime the membranes, and start filtering, Lucid handles the automation so you can focus on purity and yield.
Placing an order initiates our review process but does not guarantee acceptance or delivery. Inventory levels change rapidly; please call or email us to confirm stock, configuration options, and shipping dates before you buy. After we receive your order, a Lucid representative will contact you to verify availability, lead time, and any required options. Software licenses are not included unless expressly stated and may be purchased separately. Additional customization to match your specific system hardware is available upon request and quoted separately.
